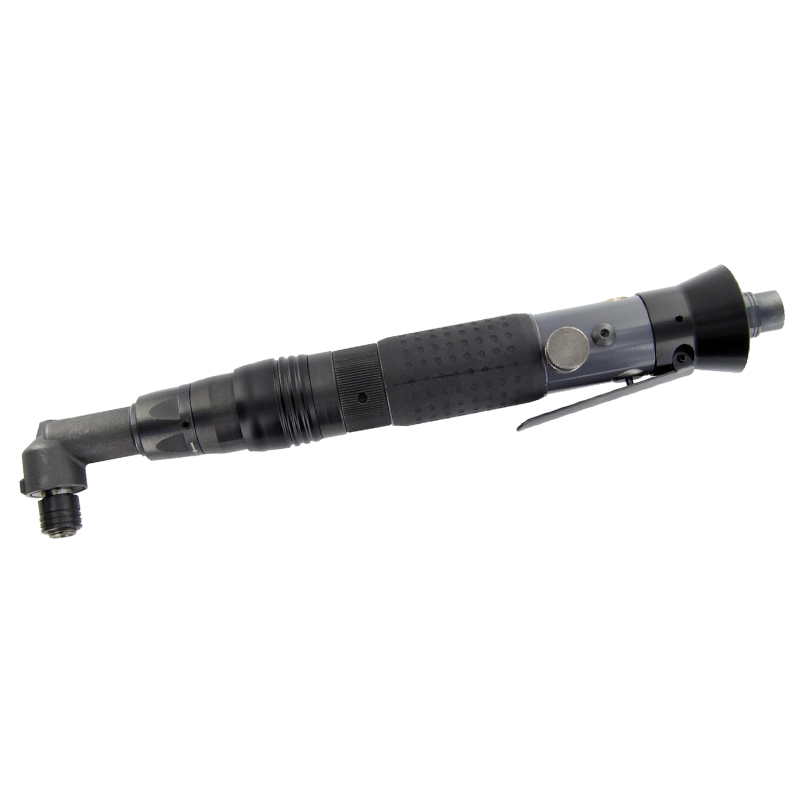

DSE RRI-SA30511W shut-off pneumatic screwdriver

Code 4-1577802

DSE RRI-SA30511W shut-off pneumatic screwdriver

Code 4-1577802

The DSE RRI-SA30511W pneumatic angle screwdriver is designed for medium capacity tightening whether hard-to-reach or multi-plane. The startup is activated by a lever. It is equipped with an air-cutoff clutch which guarantees tightening precision over wide adjustment ranges. It is pre-equipped with two sockets for processing pneumatic signals.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
3.5 Nm lbf.in
Max Torque
10 Nm lbf.in
Nominal speed
550 tr/min rpm
Drive Size
3/8 Square
Weight
1.36 kg lbs
Shape
Angle head
Starting system
Lever
Power
Pneumatic
Air inlet
G3/8
Noise level
72
Air flow
720

Benefits

Productivity
  • Efficiency, power and rotation speed are optimized pneumatic motor
  •  It offers a wide range of torque settings
Comfort
  • The lever arm of this angle tool cancels out the negative effects of the torque reaction
  • The body is covered with a bi-material, non-slip, flexible, ergonomic sheath.
Quality production
  • The torque is precisely repeated thanks to an air-cutoff clutch
  • The  start level optimizes startup control
  • The processing of collectable pneumatic signals on the screwdriver secures tightening operations
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

The robust DSE RRI-SA30511W screwdriver features an ergonomic design that brings maximum comfort over long periods of use.
Its body is covered with a comfortable, non-slip rubber sheath.
The lever arm of this angle tool cancels out the negative effects of the torque reaction.
Equipped with a start-up lever and a mechanical clutch with cutting-edge air-cutoff, it combines precision of movement and quality tightening.
Pre-equipped, the screwdriver allows pneumatic signals to be collected on the starter lever and on the evacuation outlet.
