Assembly technology

GXD 250 shut-off brushless electric screwdriver

Code P205301

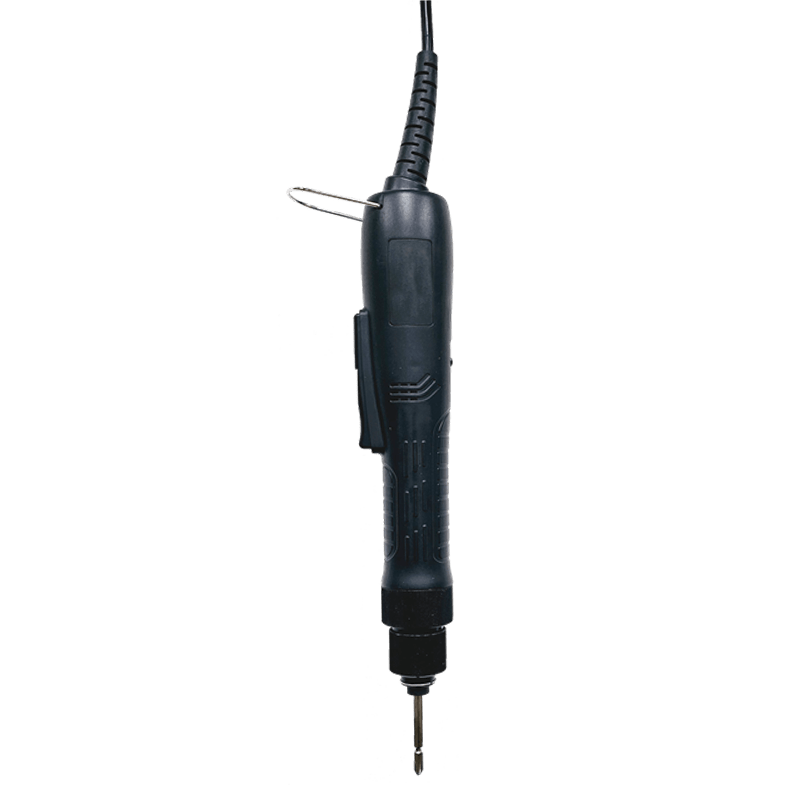

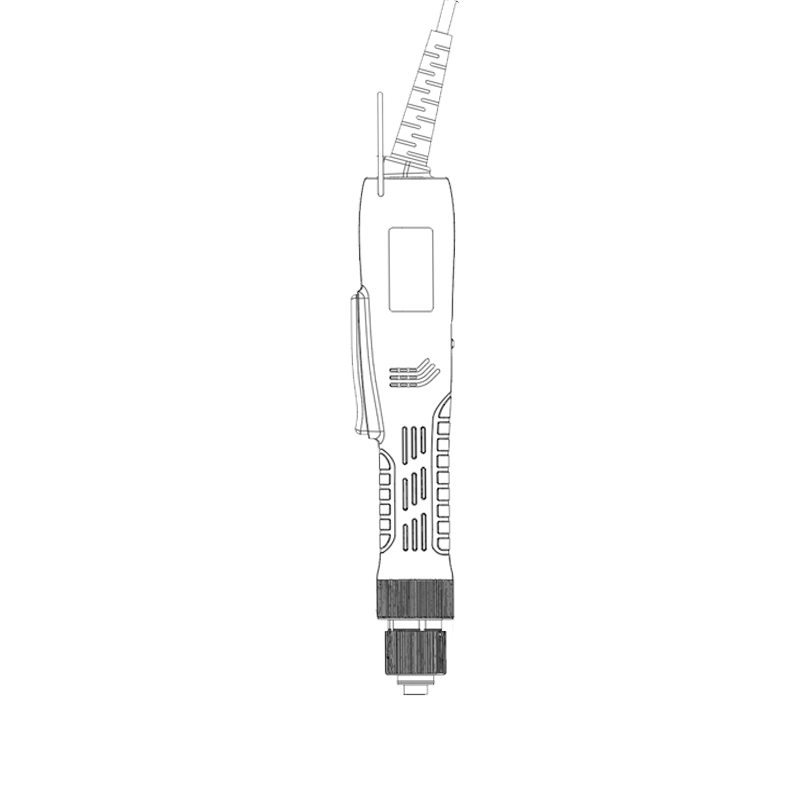

GXD 250 shut-off brushless electric screwdriver

Code P205301

The GXD 250 shut-off straight screwdriver is the ideal solution for workstation with limited space. It works without controller and plugs directly into the mains. It is equipped with a lever start and a fast chuck type drive for ¼ " female Hex bits.

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.7 Nm
Max Torque
2,45 Nm
Nominal speed
1400 tr/min
Drive Size
1/4" F/Hex
Weight
0.97 kg
Shape
Straight
Starting system
Lever
Power
Electric

Benefits

Productivity

•    Maximum efficiency (fixed speeds)
•    Optimized limited features
•    Surge and temperature protection

Quality

•    Brushless motor (maintenance free)
•    Start, reversibility and non-contact sensor shut-off

Comfort

•    Optimized ergonomics
•    Excellent weight / ergonomics ratio
•    Space-saving and more mobility because it works without controller

Product description

Equipped with a maintenance-free brushless motor, the GXD 250 electric shut-off lever-start straight screwdriver is the better solution for confined working environments, as it plugs directly into a 230 V socket.

It has optimized limited features for easy use.

Single-speed designed, it is fast and efficient.

It is supplied with a suspension ring.

We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, etc.).

Associated products

Air vacuum system & sleeves

By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
