Product description

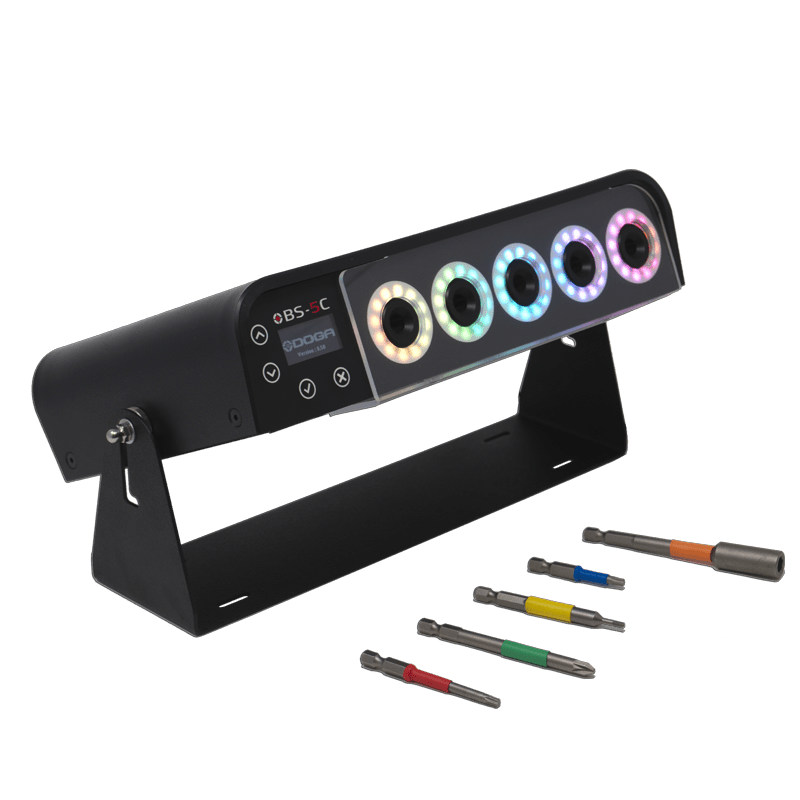

Easily setup, the Color ID BS-5C bit tray automatically memorizes which bit is assigned to which slot.
It guides the operator to ensure the right match between selected bit and tightening program, thanks to color identification.
A unique process with a minimum of 5 colors up to 7 colors.

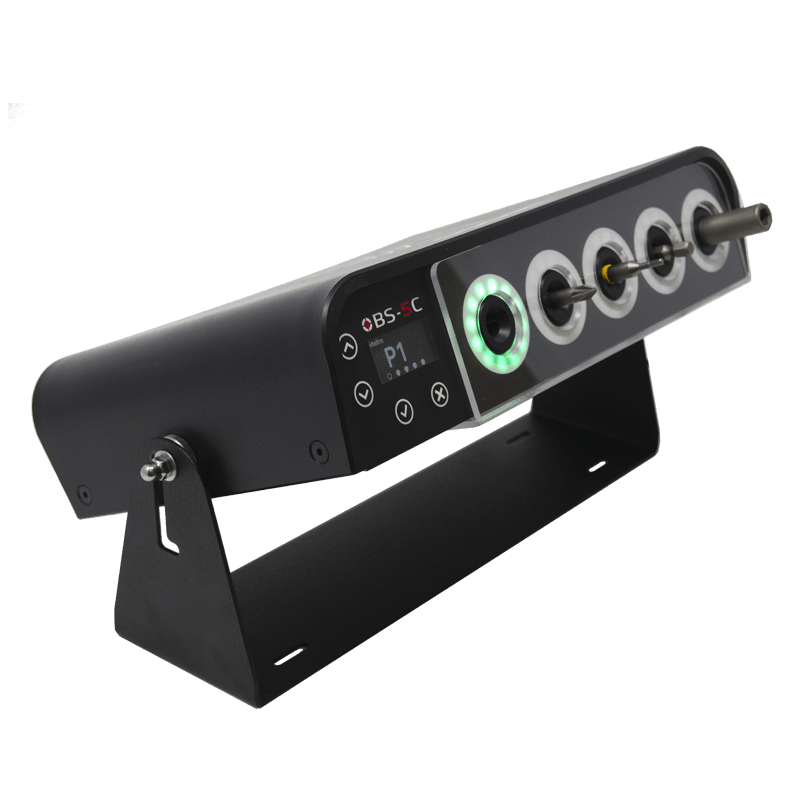

It can be used in two ways: it either tells the operator which bit to use to perform the assembly operation, or it selects the tightening program associated with this bit when the operator takes a tightening bit.

Its self-learning configuration does not require machining or factory setting like most bit boxes on the market.

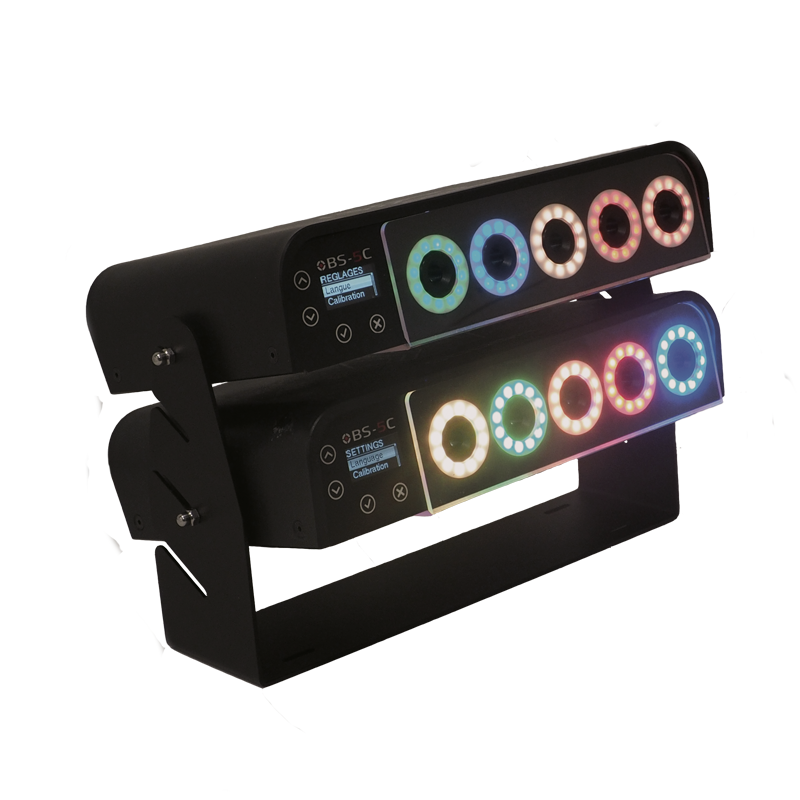

Thanks to the possibility of adding an extension to the main box, the Color ID BS-5C bit tray can double its capacity from 5 slots to 10
slots

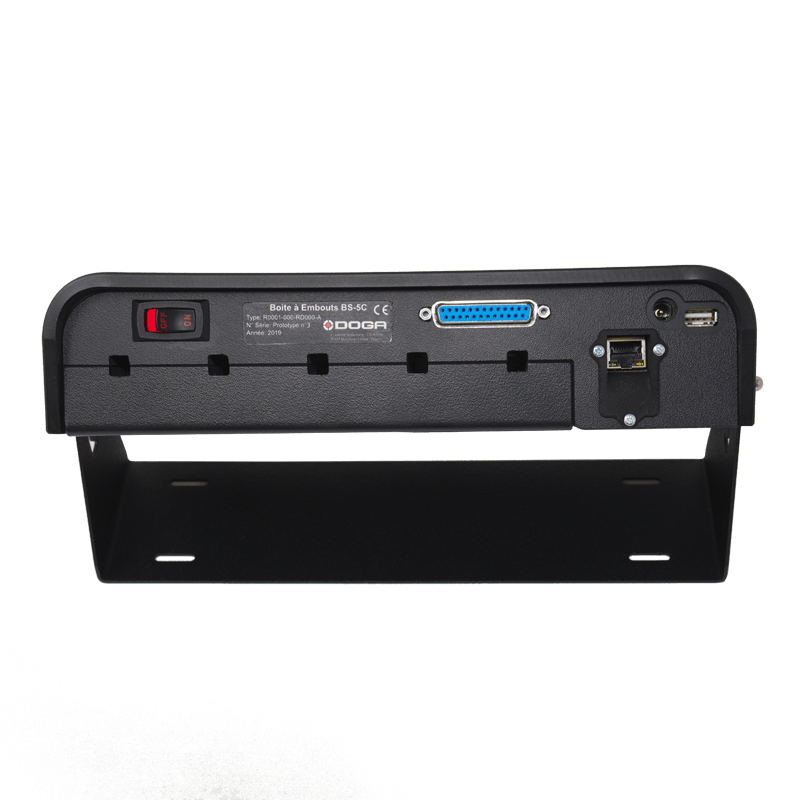

• Connection with any screwdriver controller by digital I/O’s.
• Easy bits length and diameter bits positioning.
• Color self-learning for each bit position.
• Mode and program assignment for each bit.
• Available languages: French / English / Italian / German / Spanish / Czech.
• Supplied without bit holders.
• Included 100-240 V 1 A / 24 VDC power supply 2
• 20 heat-shrink color sleeve samplessupply.
• Dimensions: length 280 mm, height 62 mm, depth 170 mm

• Color ID BS-5C bit tray - standard EU plug
  Code: P100431
• Color ID BS-5C bit tray - standard UK plug
  Code: P174055
• Color ID BS-5C bit tray - standard US plug
  Code: P174056
• Extension BS-5C - Color ID BS-5C bit tray to extend a standard Color ID BS-5C bit tray
  Code: P104233

• Full bit holder, to lock a slot or to be drilled specific to bit diameter
• Bit holder for Hex. 1/4’’
• Kit of 100 color heat-shrink sleeves
• External stop for long bits between 200 and 300 mm
