SDC controller

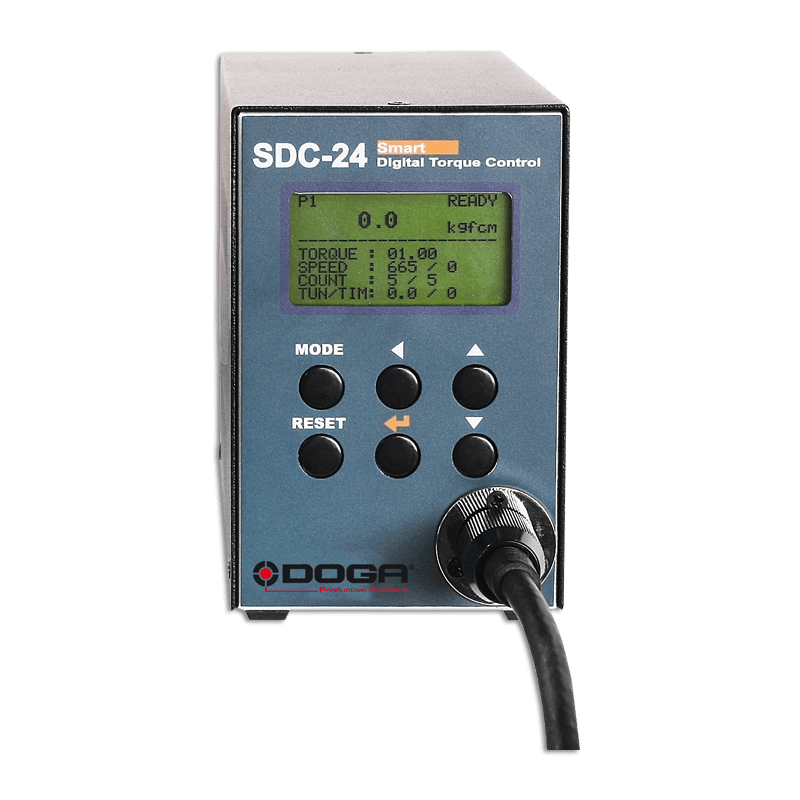

SDC controller

SDC-24 model: code 4-1000245
SDC-40 model: code 4-1041801

(Discontinued product)
Controller with LCD display for power drive and  control of SD series screwdrivers.

Product description

Preset parameters: torque, speed & angle
Preset selecting: front panel button or 25P I/O interface
Torque calibration: -10%  +10%
Auto recognition : auto detection of connected driver when power ON of controller
Error display : error code display – 3 groups
Fastening quality control : fastening data verification (NG/OK) against the pre-setting pattern of angle
Screw counter: total 8 programs of tightening screw number and sequence
Parameter setting and monitoring: MS Windows PC software, Smart-Manager of front panel

SDC-24 model
Input: AC 120 VC 2A or AC 220 V, 50-60 Hz 3A
Output: DC 24 V 5A
Torque control range: 0,1 – 1,47 Nm
Speed control range: 190-1000 rpm
Angle control range: 0,4° step
For  SD model 120 up to 1500

SDC-40 model
Input: AC 120 VC 2A or AC 220 V, 50-60 Hz 3A
Output: DC 40 V 3A
Torque control range: 0,1 – 2,7 Nm
Speed control range: 300-1000 rpm
Angle control range: 0,4° step
For SD model 05, 09, 18, 28

Accessories delivered with the controller:
USB com cable: code 4-1042213

Accessories delivered with the screwdriver:
Driver cable SD 3m : code 4-1074440

Option:
5 meters tool cable: code 4-1074420
I/O SUB-D25 male cable: code 4-3003000

Resources

4Software

SDC SmartManager – V1.16.7_170704- EN

Set and monitor your tightening application on free PC software.
Job settings: torque, speed, angle, soft start, torque tuning
Real time readings of all tightenings
Screw counter
Process monitoring
Error monitoring
Built counting program with torque sequencing

Driver USB - CP210x USB to UART Bridge VCP Drivers
https://www.silabs.com/products/development-tools/software/usb-to-uart-…

Download the file in zip

SDC V1.16.7 150330 for FND - EN

Firmware for FND display of SDC-24 and SDC-40 controllers

Download the file in zip

SDC V1.24.3 181218 for LCD - EN

Firmware for LCD display of SDC-24 and SDC-40 controllers.

Download the file in zip

SDC-24 and SDC-40 upgrade

Software for SDC-24 controller firmware upgrade

For LCD and FND version
Driver USB - CP210x USB to UART Bridge VCP Drivers
https://www.silabs.com/products/development-tools/software/usb-to-uart-…

Download the file in zip

SDC-24, SDC-40 firmware upgrade manual -MU.60264

-

Download the file in pdf
